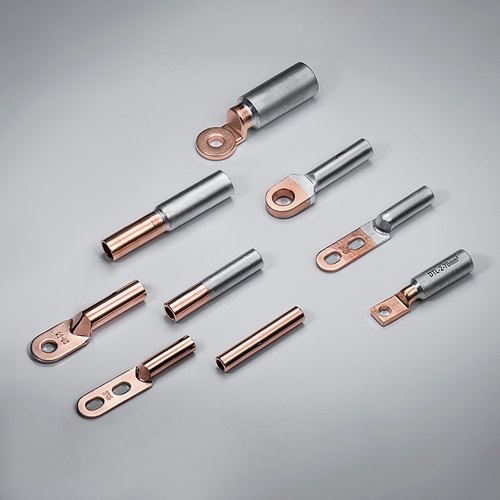

Reverse BI-Metallic Lugs

Name: Reverse BI-Metallic Lugs
Brand: BHARTI POWER ENGINEERING
Price: 400.0 INR
Availability: InStock

Price 400.0 INR/ Piece

Get a Price/Quote

MOQ : 5000 Pieces

Reverse BI-Metallic Lugs Specification

Usage & Applications
Electrical power distribution, switchgear, panel boards

Core Number
Single core

Weight
Varies per size/model

Impedance
Low - Optimized for minimal resistance

Conductor Shape
Tubular

Locking Type
Standard mechanical fit

Number of Conductor
Single

Core Material
Copper/Aluminum

Conductor Type
Solid/Stranded

Rated Temperature
-20°C to +80°C

Operating Temperature
Up to +80°C

Features
Reverse type, BI-metallic construction for improved conductivity

Diameter
As per specification - varies with lug size

Cable Type
Suitable for aluminum to copper cable terminations

Install Type
Compression/crimping

Insulation
Non-insulated

Tensile Strength
High, suitable for heavy duty connection

Product Type
Reverse Bi-Metallic Lug

Length
Varies as per size specification

Voltage
Up to 1100V

Application
Cable terminations and connections for dissimilar metals

Conductor Material
High conductivity copper and aluminum

Storage Temperature
-25°C to +90°C

Connector Color
Silver/Aluminum

Shield Material
Aluminum and Copper

Dimension (L*W*H)
Depends on selected lug size

Material
Aluminum barrel, copper palm

Color
Metallic Silver

Size
6mm² to 630mm² (various available)

Tool Compatibility
Compatible with standard crimping tools

Palm Hole Diameter
Customized as per cable size requirement

Surface Finish
Tin plated for enhanced corrosion resistance

Contact Resistance
Extremely low, ensures reliable electrical performance

Compliance Standard
IS/IEC standard compliant

Packaging Type
Individual polybag or bulk box

Barrel Type
Straight barrel for easy cable insertion

Environmental Resistance
Corrosion and moisture resistant

Reverse BI-Metallic Lugs Trade Information

Minimum Order Quantity
5000 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
100 Pieces Per Week

Delivery Time
3 Days

Main Domestic Market
All India

Reverse BI-Metallic Lugs About

Used for bolted connections between copper cables and aluminium busbars or terminals. Manufactured from electrical-grade aluminium and copper. Featuring a robust fusion-welded AL/Cu joint

Superior BI-Metallic Construction

Our reverse BI-metallic lugs feature an aluminum barrel and copper palm, uniting the advantages of both metals for improved conductivity and high tensile strength. This robust combination is designed to efficiently terminate aluminum conductors to copper busbars or terminals, ensuring minimal impedance and excellent performance. Their bi-metallic build makes them suitable for demanding electrical installations, thereby extending the life of your electrical connections.

Reliable Performance with Customization

The straight barrel design ensures ease of cable insertion, accommodating solid or stranded conductors. With customizable palm hole diameters and lug lengths, these lugs meet diverse installation requirements and specifications. Tin-plating delivers superior corrosion protection, and their compatibility with standard crimping tools enables convenient installation, whether for bulk or single-use projects in industrial or commercial environments.

FAQ's of Reverse BI-Metallic Lugs:

Q: How do reverse BI-metallic lugs ensure reliable cable terminations?

A: These lugs feature a straight barrel for easy cable insertion, low contact resistance, and bi-metallic construction, ensuring secure and efficient termination between aluminum and copper cables. The tin-plated surface enhances corrosion resistance, guaranteeing reliable connections even in demanding environments.

Q: What is the main benefit of choosing bi-metallic construction for these lugs?

A: The bi-metallic design combines aluminum barrels with copper palms, allowing safe and conductive termination between dissimilar metals. This optimizes conductivity, reduces electrical resistance, and prevents galvanic corrosion, resulting in longer-lasting and safer electrical connections.

Q: When should I use reverse BI-metallic lugs in my electrical systems?

A: Use these lugs when connecting aluminum cables to copper terminals, such as in power distribution, switchgear, and panel boards, especially when adherence to IS/IEC standards is required and enhanced corrosion resistance is needed.

Q: Where can these lugs be installed for maximum effectiveness?

A: These lugs are most effective in electrical power distribution systems, switchgear assemblies, panel boards, and other setups where cable terminations involve connecting different metals. Their corrosion resistance makes them suitable for a range of industrial, commercial, and utility applications across India.

Q: What is the installation process for these lugs?

A: Installation involves selecting the correct lug size, inserting the cable into the straight barrel, and using a compatible standard crimping tool to compress the connection. The palm hole can be customized for a precise fit, ensuring mechanical and electrical reliability.

Q: How does tin plating improve the performance of these lugs?

A: Tin plating acts as a barrier against corrosion and moisture, protecting the metal components from environmental degradation. This finish maintains low impedance and prevents oxidation, helping to sustain optimal electrical performance over time.
